IP67 Blanking Infrared Light Curtain

Shenzhen Jutai Comm Co., Ltd. - Door Sensor Photocell Light Curtain

The Blanking Light Curtain from Shenzhen Jutai Comm Co., Ltd. is an innovative safety device engineered to enhance the protection and operational efficiency of industrial doors. Equipped with a robust active infrared sensor that boasts strong light resistance, this device operates reliably even under challenging lighting conditions. With a remarkable detection range of up to 8 meters and swift response times, it provides critical safety monitoring in industrial environments, making it an invaluable investment for ensuring workplace safety.

Technical Features and Benefits

• Seamless System Integration: Designed for easy incorporation into a variety of door control systems, this sensor ensures compatibility and smooth operational integration.

• Adaptable Installation: The sensor can be directly integrated into the door edge, providing flexibility to suit diverse door configurations and installation requirements.

• Compact and Efficient Design: The CL15-8L8 model is a compact light curtain specifically designed for automatic doors and gates, ensuring reliable safety within a small footprint.

• Broad Application Scope: Suitable for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators, demonstrating its versatility across multiple industrial applications.

• Precise Detection Capabilities: Utilizes through-beam technology to accurately detect the presence of individuals or objects, thereby preventing accidents and ensuring timely door operation signals.

• Flexible Output Options: Offers multiple output methods (NO/NC and COM), enhancing integration flexibility with various door control systems.

• Energy Efficiency: Operates with a low current consumption of less than 20mA at DC12V and supports a working voltage range of DC12-24V, ensuring efficient energy use.

• Simplified Wiring: The blanking safety light curtain eliminates the need for a synchronization wire between the emitter and receiver, streamlining on-site wiring and reducing material costs. The emitter requires only a power wire, while the receiver needs a power wire and relay signal output wire. The synchronization signal is transmitted via infrared, with circuit board logic ensuring synchronization through this transmission.

Key Specifications

• Model: CL15-8L8
• Technology: Active Infrared Sensor with Strong Light Resistance
• Detection Range: 8 meters
• Response Time: Fast and reliable
• Working Current: <20mA at DC12V
• Working Voltage: DC12-24V
• Output Methods: NO/NC and COM
• Applications: High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, freight elevators
• Protective Height: Maximum 1225mm (concealing mode), 1305mm (normal mode)
• Operating Temperature: -20 ~ +70℃
• Protection Level: IP67
• Shell Material: Aluminum alloy

Installation Guidelines

1. Remove Covers and Connect Wires:

   • Detach the top and bottom covers of the sensor.
   • Establish wire connections and route the thread end through the designated threaded port.

2. Position and Mark Holes:

   • Align the transmitter and receiver in parallel to confirm the installation position.
   • Mark the hole positions accurately on the wall.

3. Drill and Fix:

   • Use a percussion drill to create holes at the marked locations.
   • Insert wall plugs into the drilled holes and secure them with screws.

4. Mount Transmitter and Receiver:

   • Attach the transmitter and receiver to the wall using M3*25 screws.
   • Connect the power supply and test the sensor alignment.
   • Adjust the angle by rotating the aluminum tube if necessary.
   • Tighten the rotating screw securely once aligned.

5. Replace Covers and Final Testing:

   • Reattach the sensor’s top and bottom covers with M2*8 screws.
   • Conduct a final test to ensure proper sensor functionality.

Enhance Workplace Safety

Enhance the security and safety of your industrial operations with the Door Sensor Photocell Light Curtain. This advanced sensor offers robust security features, including an 8-meter detection range, flexible installation options, and precise detection capabilities. Its seamless integration with various door control systems and wide application range make it a reliable choice for enhancing safety in industrial settings. Trust in the quality and performance of the CL15-8L8 light curtain to provide optimal security and peace of mind.

Features

• Integration: Compatible with all types of door control systems
• Mounting Type: Direct integration into the door edge due to door blanking
• Description: Automatic door safety light curtain sensor

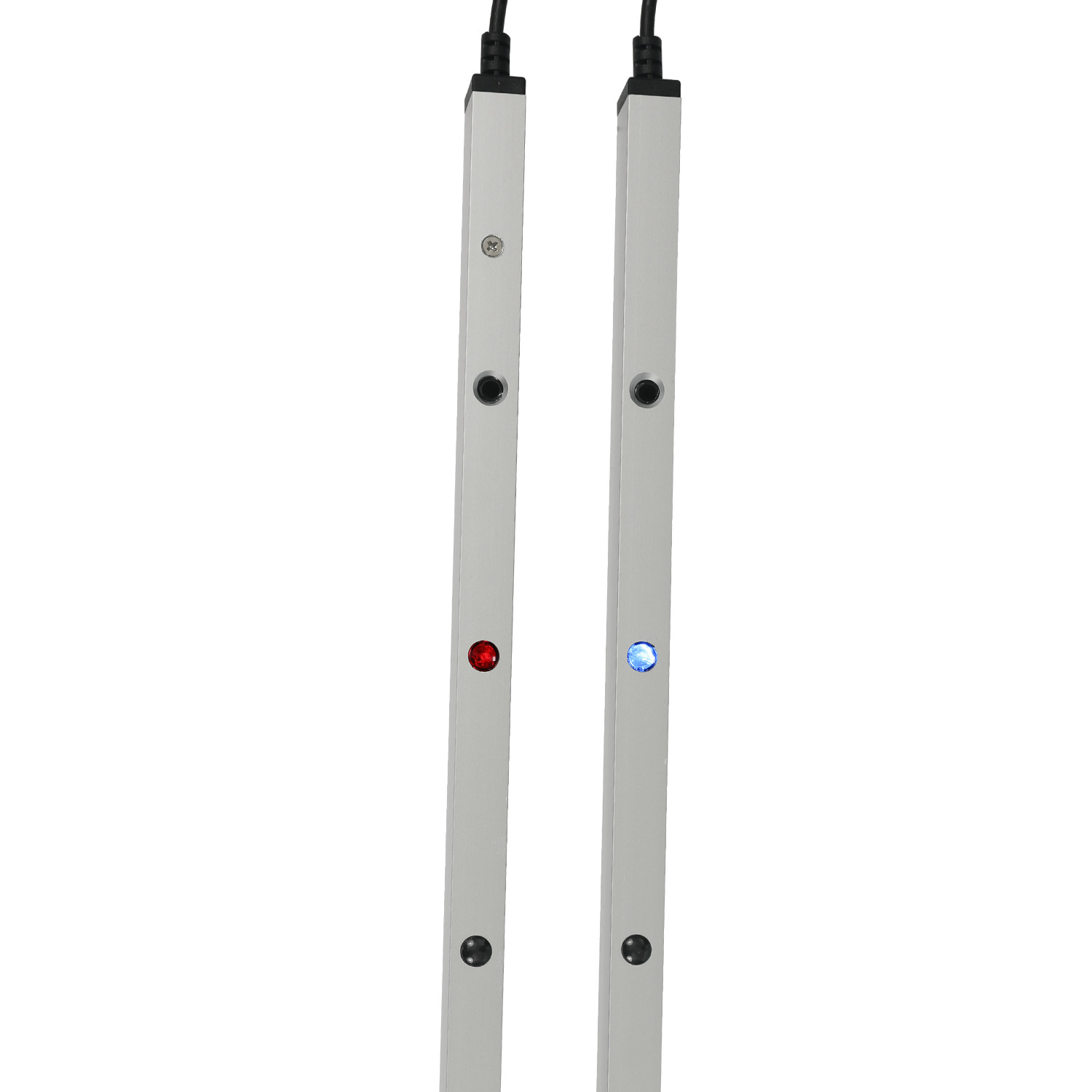

• Model Number: CL15-8L8 (8 beams, 150cm height)
• Type: Safety light curtain
• Usage: High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, freight elevators
• Theory: Through-beam safety light curtains are used for fast doors and rolling shutter doors to prevent clipping (people or objects), accurately detecting passing individuals or objects to provide door opening signals and avoid potential safety hazards.
• Output: NO/NC, COM
• Working Current: <20mA@DC12V
• Working Voltage: DC12-24V
• Detection Range: Maximum 8m
• Protective Height: Maximum 1225mm (concealing mode), 1305mm (normal mode)
• Output Method: NO/NC, COM
• Beams: 8 beams
• LED Status:
  • Receiver: Red light (object blocked), blue light (unblocked), blue light flash (emitter and receiver not aligned)
  • Transmitter: Blue light constant (normal), red light flash (voltage below 9V, above 28V)
• Operating Temperature: -20 ~ +70℃
• Protection Level: IP67
• Shell Material: Aluminum alloy

Elevate industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for high-speed doors with an 8-meter detecting range.
